電話番号:
中国 プレハブ鉄骨住宅 メーカー
NINGBO DEEPBLUE SMARTHOUSE CO.,LTD

ニンポーDEEPBLUE SMARTHOUSE CO.、株式会社

世界のための造るスマートな家!

ホーム 製品プレハブ鉄骨住宅

Prefabricated House , Light Steel Modular Villa , Modular Prefab Houses For Office

Prefabricated House , Light Steel Modular Villa , Modular Prefab Houses For Office

商品の詳細:

起源の場所: 中国
ブランド名: DEEPBLUE
証明: CE,ISO,SAA,SGS
モデル番号: DPBL-V-4

お支払配送条件:

最小注文数量: 1 セット
価格: FOB 100-800USD per square meter
パッケージの詳細: 大きさの軽いゲージの鋼鉄は、パレット、4 に荷を積まれる箱の他の付属品すべてのパネルの materil を飾ります
受渡し時間: 造ることはによって区域、常態 35 日決まります
供給の能力: 1 ヶ月あたりの 15000square メートル
今すぐお問い合わせ
詳細製品概要
mterial フレーム: AZ150 亜鉛コーティングが付いている 0.75mm/0.95mm/1.15mm の鉄骨フレーム 外的な壁: 100 か 50mm ALC panel/WPC 板/繊維のセメント
断熱: ガラス wool/EPS/XPS/PU サンドイッチ パネル 天井材料: MGOboard/のギプス board+others
フロア: 積層物/木/タイル ドア: 金属の保証ドア/ポリ塩化ビニールの引き戸
屋根を付けること: EPS サンドイッチ パネル/鋼鉄屋根ふき/アスファルト 他の付属品: 洗面所、洗面器、シャワー、台所、等

Prefab Light Steel Modular Villa , Modular Prefab Houses For Office



Quick Detail:



Name

prefabricated villa

Application

Villa for living

Color

white

Feature

1.quickly to assemble on site;

2.good earthquake proof;

3.green,and energy save;

material light steel and other parts material

Certificate

CE,ISO,SAA,ETC





Description:



Main structure: Light Gauge Steel

Wall material: ALC panel/fibre cement cladding+MGO board/gypsum board

Insulation material: Insulation material

Ceiling material: MGO board/gypsum board

Floor/foundation material: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Roofing: EPS sandwich panel/steel roofing/asphalt shingle

Other fittings: toilet,washbasin,shower,kitchen etc.

Life time: 100 years for structure





Applications:



House, Office, Villa,etc.





Specifications:



Product Description



DeepBlue steel structural prefab villa  is based on light gauge steel frame system with high performance finishing materials. The whole house can be assembled within couple of hours by 4workers. the materials are the following:

1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.  the structure can be design to resist 50m/s wind and 9degree earthquake.

2. Roof structure: 89mm light gauge steel truss system.

3. Chassis : 89mm light gauge steel flooring chassis

4. flooring: 18mm fiber cement board with vapor barrior and bamboo flooring or wooden flooring , pvc carpet etc.

5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration

6. interior lining: 9m fiber cement board ,water-proof ,termite-proof ,security and healthy

7. ceiling: 8mm pvc ceiling panel

8. insulation: 89mm glasswool insulation with good sound proof performance.

9.windows: PVC sliding windows

10.exterior door: high quality aluminim sliding windows

11.interior door: painted wood door

12.bathroom: shower, wash basin, toilet inculded

13. roofing: corrugated steel roofing with gutter system

14. veranda deck: W.P.C veranda flooring.

ISO standard light gauge steel for main structure.fireproof,heat insulation,wind and earthquake resistance.green,energy save. also economically.





Why Choose Light Gauge Steel Structure?



1)Lifetime for structure: 100 years.[0.75~1.2mm , Z275galvanized steel profile, strength:550Mpa ]

2)Earthquake resistance: mix more than 8 grades.

3)Wind resistance:max 60m/s.

4)Fire resistance:all the materials used can be fire resistance.

5)Snow resistance:max 2.9KN/m²as required

6)Heat insulation:100 mm in thickness can match 1 m thickness of brick wall.

7)High acoustic insulation:60db of exterior wall 40db of interior wall

8)Insect prevention: Free from the damages by insects, such as white ants

9)Ventilation:a combination of natural ventilation or air supply keep the indoor air fresh and clean

10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.

11)Installation:the average is one worker one day install one SQM.

12)Installation guide:dispatch engineer to guide on site.

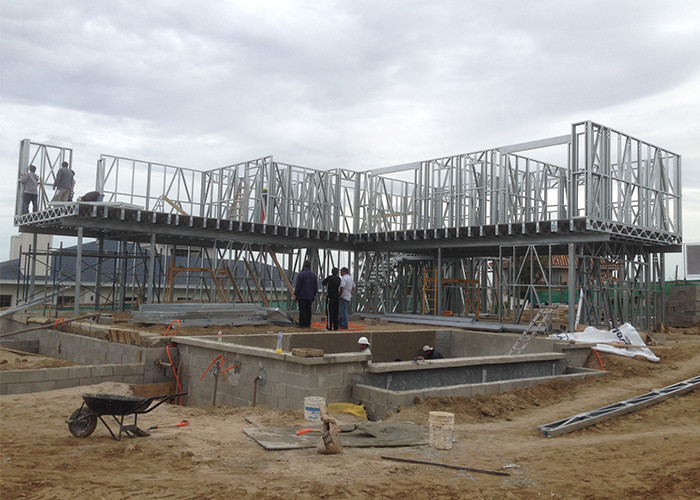

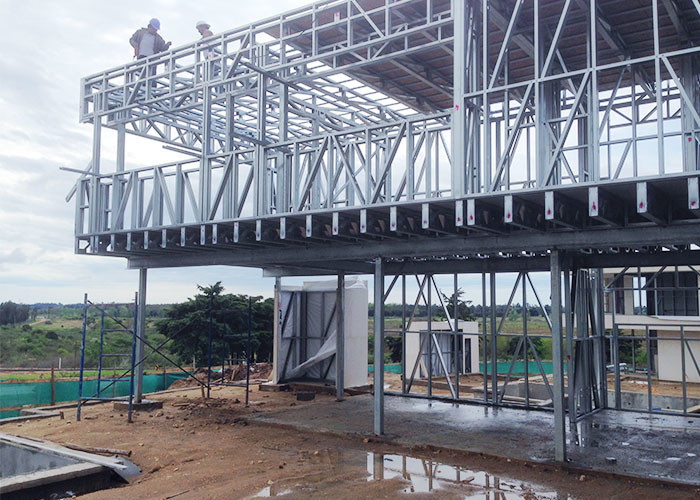

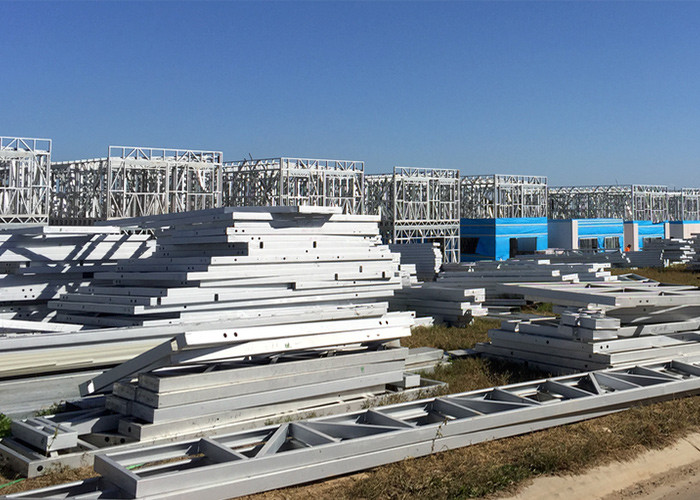

Production in DeepBlue factory:



Prefabricated House ,  Light Steel Modular Villa , Modular Prefab Houses For Office





Design code:



(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.

(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.

(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.

(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

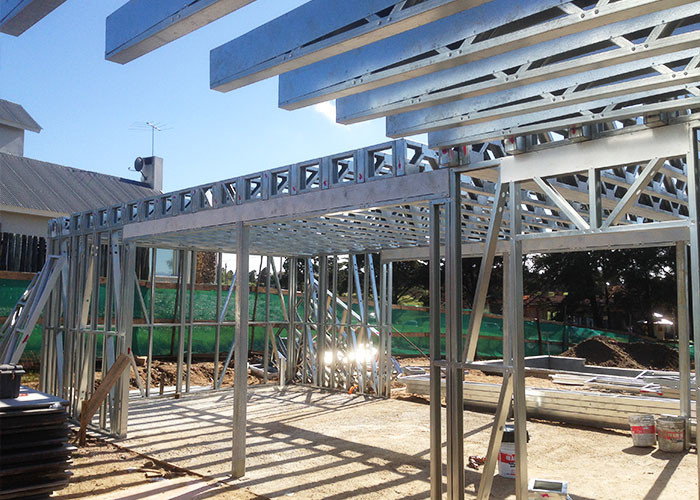

Technology Details:



 Prefabricated House ,  Light Steel Modular Villa , Modular Prefab Houses For Office

Prefabricated House ,  Light Steel Modular Villa , Modular Prefab Houses For Office

If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house

Only Need You To Provide Us:house area,how many floor and bedrooms,luxury or normally,or low cost configuation.

We Can Provide You:villa;bungalw;low cost house;granny flat;apartment etc.many buildings.

Your first choice,Deepblue Prefabricated house in China.
