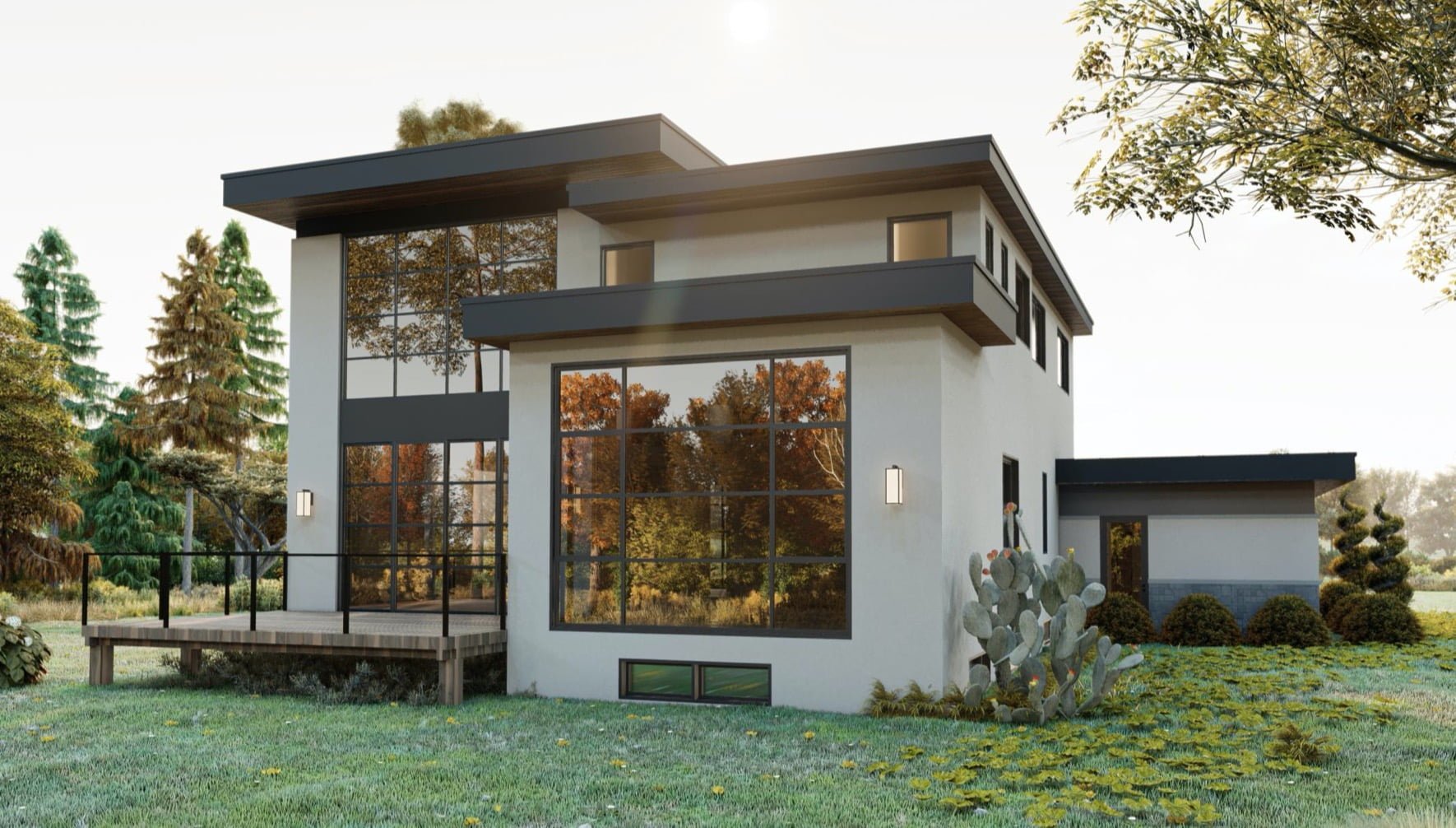

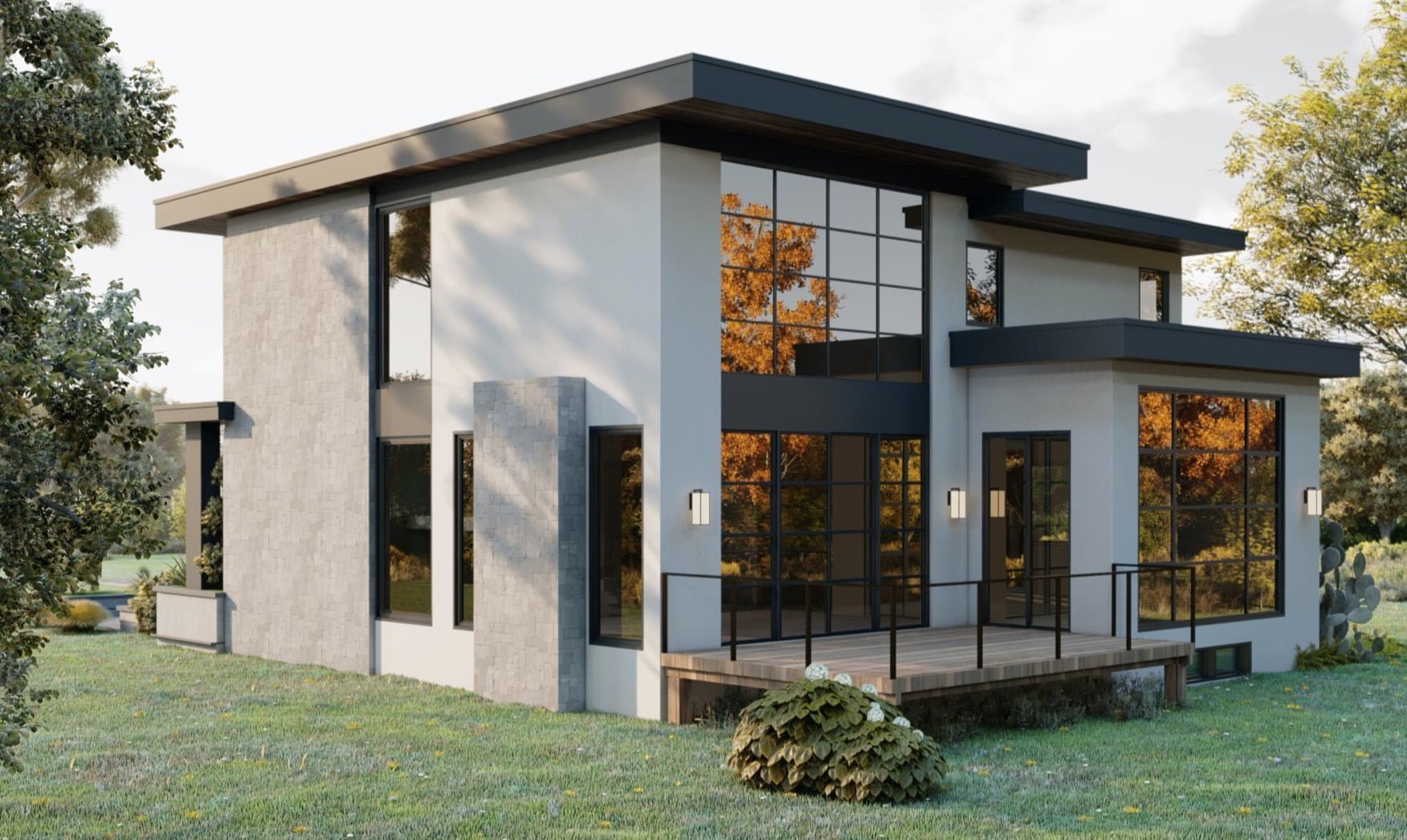

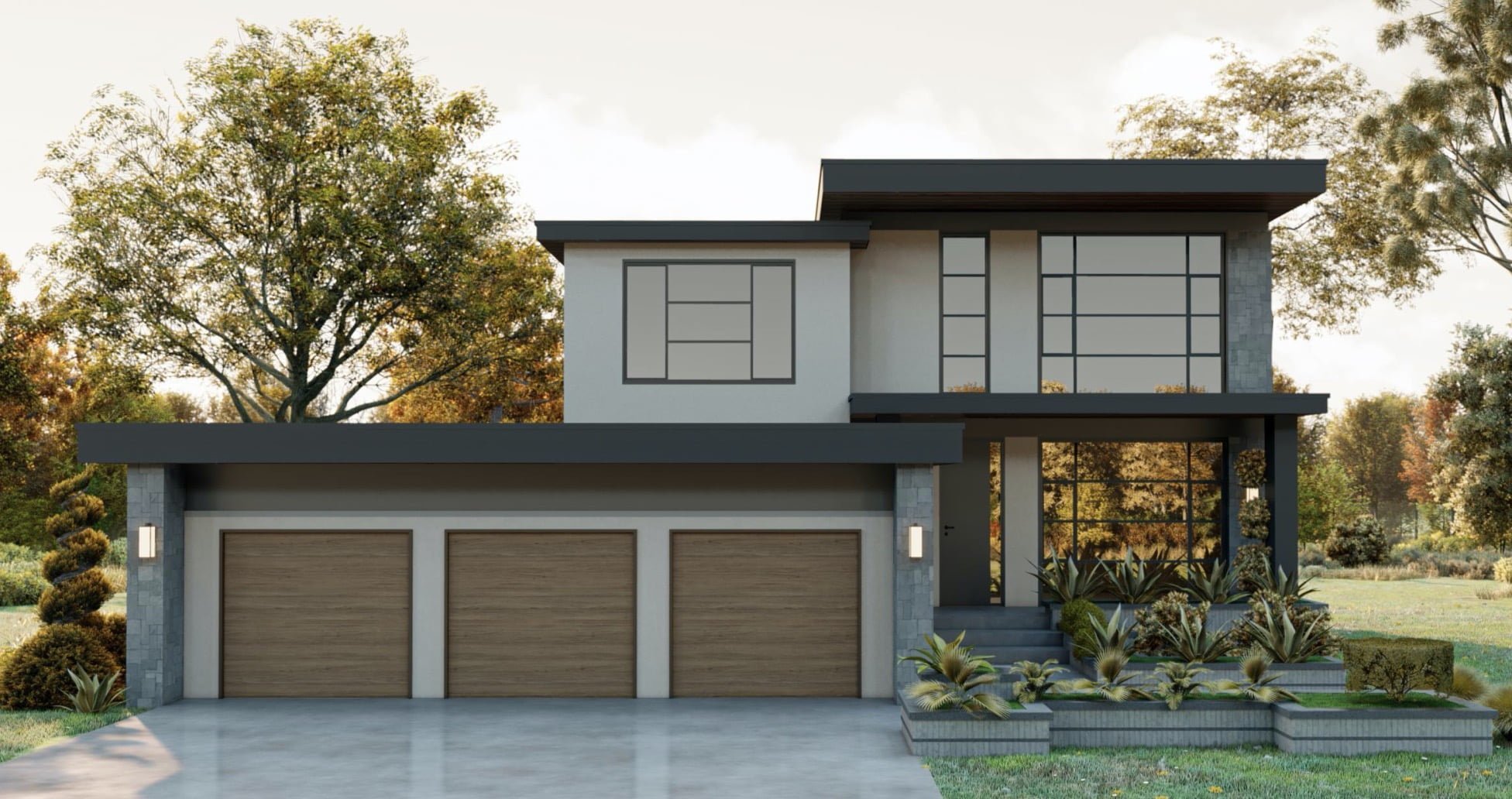

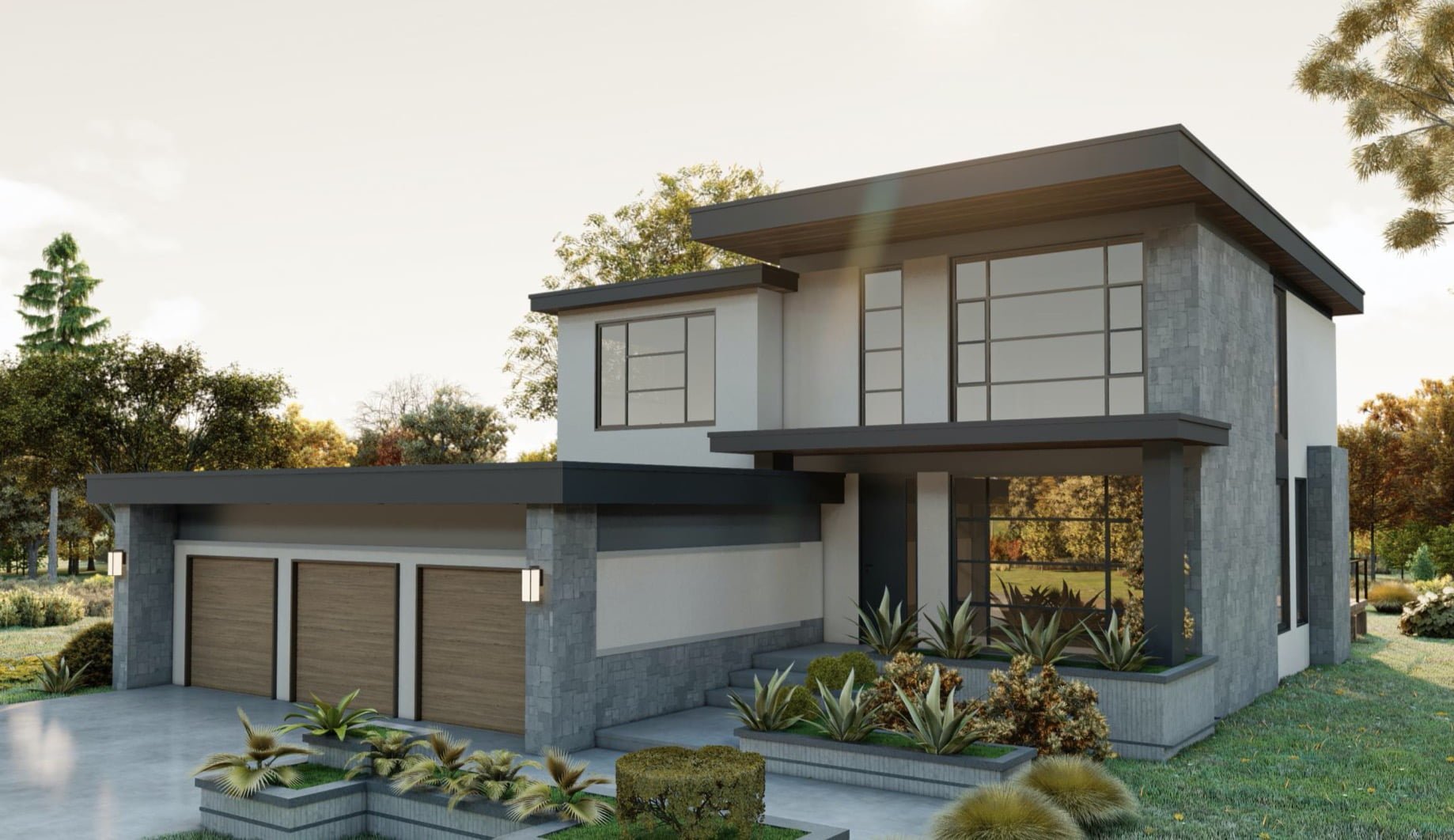

Modular Prefab House Single Family Home With Light Steel Frame Luxury Mansion

3 bedrooms  3Bathroom  2 Living 3 Garage 331.24QM

Floorplan:

Ground Floor
Upon approaching the house, a spacious outdoor deck greets you at the entrance.To the left of the entrance, there is a large garage capable of accommodating up to 3 vehicles, meeting the parking needs of a modern family and offering additional storage space for outdoor gear or tools.

Stepping into the entryway, an office is located on the right side – a private and quiet space perfect for remote work, study, or business meetings, ensuring work and life are well-separated.Behind the office, a staircase leads directly to the second floor, with a convenient bathroom opposite the staircase, designed to meet the daily needs of residents and guests without affecting the privacy of other spaces.

The main living area features an adjacent living room and kitchen, creating an open and bright communal space. The living room is spacious and airy, ideal for family gatherings or leisure time, while the kitchen is designed for practicality and efficiency. Behind the kitchen lies a dining area, seamlessly connected to both the kitchen and a rear deck, allowing for easy access to outdoor space during meals and enhancing the sense of space.

Second Floor

Ascending the staircase to the second floor, you will find a well-organized private living area designed for comfort and privacy. This floor features 3 spacious bedrooms, each with ample natural light and storage space, catering to the needs of a family of different sizes – whether for children’s rooms, guest rooms, or a master suite.Complementing the 3 bedrooms are 2 well-appointed bathrooms, ensuring convenient access for each bedroom and avoiding morning rush hours. The layout of the second floor prioritizes privacy while maintaining a sense of openness, creating a quiet and comfortable retreat for the whole family.

• Product parameters:



  Name:	Koln House
  Size:	12155 ×16443mm
  Ground floor area:	203.53sqm
  First Floor Area:	127.71sqm
  Total Area:	331.24sqm
  Model:	DPBL-24-46





Applications:

Hotel, House, Office, etc.

Product Description:

DeepBlue earthquake proof prefabricated bungalow is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers.
the materials are the following:
1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.
the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, Pvc carpet, etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration
6. interior lining: 9m fiber cement board, water-proof, termite-proof, security and healthy
7. ceiling: 8mm Pvc ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows
11.interior door: painted wood door
12.bathroom: shower, washbasin, toilet included
13. roofing: corrugated steel roofing with the gutter system
14. veranda deck: W.P.C veranda flooring.

The Riga House is more than a design; it is a testament to integrated craftsmanship brought to life by DeepBlue SmartHouse. We specialize in translating architectural visions into tangible reality by providing the complete material ecosystem and technical expertise required for such bespoke projects. From the high-performance window systems that define this home's character to the underlying structural integrity, every component is sourced and coordinated under our rigorous oversight.


Specifications:

ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.

The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.

Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.

Your first choice, Deepblue Prefabrica
