As/Us Modular Prefab Luxury Villa House With Light Steel Frame For Modern Family Living
商品の詳細
| もっと詳しく知る | 連絡 ください | 外壁クラッディング | 50mm ALC パネル |
|---|---|---|---|
| 配管 | 給水パイプ、ユアージパイプ | エリア | 290平方メートル |
| サイズ | 17810×16420mm | 外装仕上げ | 耐候性塗料または被覆材 |
| その他のフィッティング | トイレ、洗面台、シャワー、キッチンなど | エクステリアドア | アルミニウムのスライドドア |
| ハイライト | prefab villa with light steel frame,luxury modular villa for family,modern prefab house with warranty |
||
製品の説明
As/Us Modular Prefab Luxury Villa House With Light Steel Frame For Modern Family Living
Avignon House
4 Bedroom 1 Living 1 Kitchen 4 Bathroom 0 Garage Area: 289.94m²

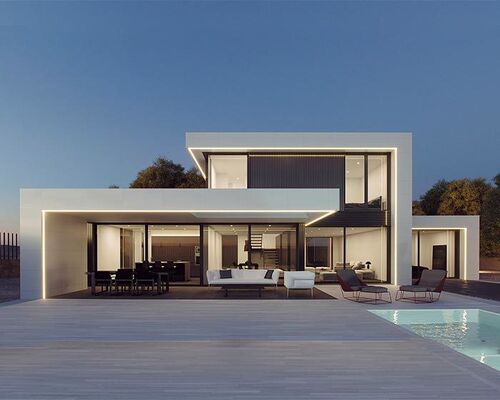

Avignon House is a modern Mediterranean-inspired villa that combines clean architectural lines with practical family living. Designed as a two-story single-family home, the house occupies an overall footprint of approximately 18m × 17m and offers a total usable floor area of around 290 square meters.

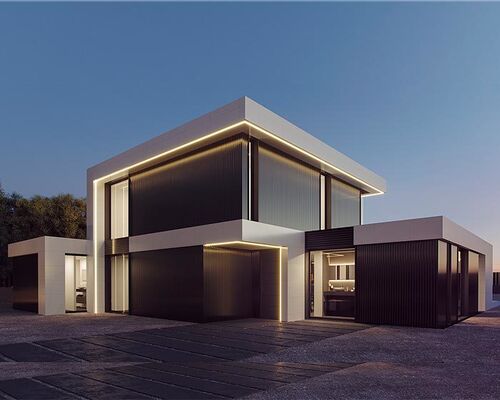

The exterior design follows a minimalist geometric style, creating a balanced appearance that blends Mediterranean influences with contemporary architecture. Large glass windows and sliding doors allow abundant natural light to enter the home, helping create bright and comfortable interior spaces throughout the day.
Floorplan:
At the entrance, a welcoming outdoor deck is positioned on the left side of the house, providing a pleasant area for relaxation, outdoor dining, or social gatherings. From the deck, large glass sliding doors lead directly into the spacious living room, which serves as the central gathering space for family members and guests.
Adjacent to the living room is an open kitchen that offers convenient access for everyday cooking and family activities. Behind the kitchen is a bathroom, adding practicality to the ground-floor layout. A staircase located toward the rear of the living room connects the two levels of the home.
The second floor is designed to accommodate family living requirements with three bedrooms and two bathrooms. The layout provides privacy and functionality while maintaining efficient use of space. Large windows continue the design theme of maximizing natural daylight and creating a connection between indoor and outdoor environments.
-
Product parameters:
Name: Avignon House Size: 17810×16420mm Ground floor area: 203.32sqm First Floor Area: 86.65sqm Total Area: 289.94sqm Model: DPBL-26-24
Applications:
Hotel, House, Office, etc.
Product Description:
DeepBlue earthquake proof prefabricated bungalow is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers.
the materials are the following:
1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.
the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, Pvc carpet, etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration
6. interior lining: 9m fiber cement board, water-proof, termite-proof, security and healthy
7. ceiling: 8mm Pvc ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows
11.interior door: painted wood door
12.bathroom: shower, washbasin, toilet included
13. roofing: corrugated steel roofing with the gutter system
14. veranda deck: W.P.C veranda flooring.
Specifications:
ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.
Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.
Your first choice, Deepblue Prefabrica
